POWER AND DATA MANAGEMENT
HIGH-VOLTAGE GAS-InSULATED
SWITCHGEAR (gis)
PDM provides gas-insulated switchgear solutions for high- and ultra-high-voltage transmission and distribution applications across North America, supporting utilities, substations, and critical power infrastructure projects.

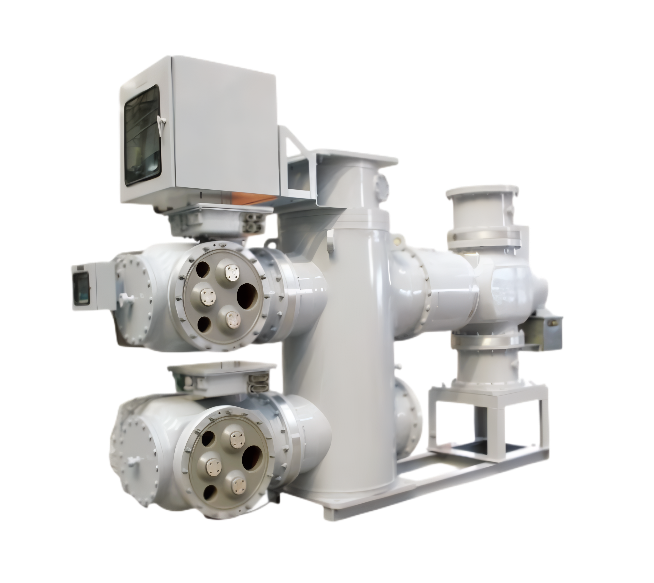

gas-insulated switchgear (GIS)
Capabilities
PDM’s Gas-Insulated Switchgear (GIS) solutions are engineered for exceptional reliability, compact design, and reduced maintenance requirements. Designed for demanding high-voltage applications, our GIS solutions deliver dependable performance while optimizing space and minimizing operational downtime.
Estimated lead times are currently 8 months.
gas-insulated switchgear
Benefits
gas-insulated switchgear (GIS)
Models
XD|GE North American Product Portfolio
| ZF7A-145 | ZF9-252 | ZF9-363 | |
|---|---|---|---|
| Rated voltage (kV) | 145 | 252 | 363 |
| Rated current (A) | 3150 | 4000 | 4000 |
| Rated frequency (Hz) | 60 | 60 | 60 |
| Rated power frequency withstand voltage, 1 min (*) (kV) | 275 | 460 | 520 |
| Rated lightning impulse withstand voltage (*) (kV) | 650 | 1050 | 1175 |
| Rated short circuit breaking current (kA) | 40 | 50 | 63 |
*Phase to earth.
Type tests on 60 Hz three-phase GIS include dielectric, mechanical endurance, tightness and temperature-rise tests.
